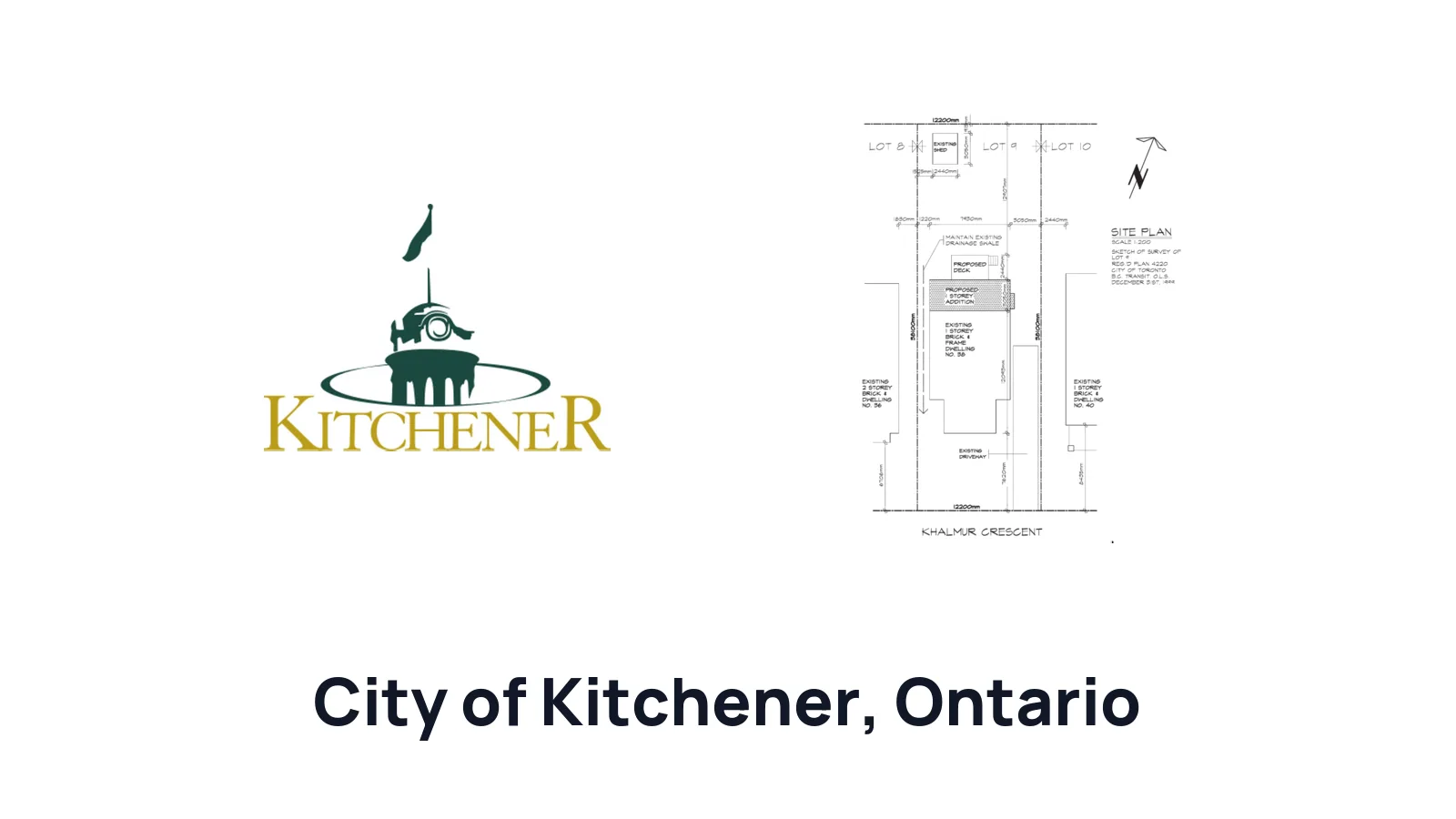

How to Draw a Site Plan for a Building Permit in Kitchener

If you are applying for a residential building permit in City of Kitchener, the site plan is where the reviewer sees the project in relation to the lot. City of Kitchener lists site-plan items for decks, porches, additions, pools, carports, attached garages, detached garages, accessory structures, sheds, and driveway widening.

This guide explains how to draw a site plan for a residential building permit in City of Kitchener, what details to include for common projects, and how to make a scaled drawing that shows property lines, dimensions, setbacks, and nearby structures clearly.

New to site plans?

If this is your first one, read what a site plan is and why you need one in Ontario first. It covers how a site plan differs from a survey, a floor plan and an elevation, what setbacks and easements actually mean, and why municipalities ask for the drawing at all. Then come back here for what City of Kitchener expects on top of that.

City of Kitchener's driveway-widening guidance specifically asks for a scaled drawing in metres with a north arrow. For building permits, the same habit helps: make the drawing measured, labelled, and easy to compare against the permit checklist.

Do you need a site plan?

You usually need a site plan when your City of Kitchener project adds or changes something outside the house. The City lists what it needs for each project type:

• Decks and porches
• Home additions
• Carports and garages
• Accessory structures and sheds
• Pool enclosures
• Driveway widening

For most building permit projects, the site plan should show the proposed work, dimensions, distance to property lines, and other structures in the area. For driveway widening, City of Kitchener asks for a scaled drawing in metres showing property lines, the house, existing and proposed driveway widths, curb cut width, walkway width if applicable, sidewalk and curb locations, distances to street fixtures and utilities, and a north arrow.

Create a site plan for free using HomeCat that gets your residential building permit approved in City of Kitchener. Get started

Site plan requirements for residential building permits in City of Kitchener

The exact City of Kitchener requirements depend on the project, but a useful site plan usually includes:

• Property boundaries or property lines
• Existing building or house location
• Other structures in the area, such as sheds, decks, pools, or garages
• Proposed work location
• Proposed work dimensions
• Distance from the proposed work to property lines
• Pool fence locations and fence construction type when applicable
• Existing and proposed driveway widths when applicable
• Curb cut, walkway, sidewalk, and curb locations when applicable
• Distances to hydrants, utility poles, guy wires, utility boxes, light posts, signs, and municipal trees for driveway widening
• North arrow, especially for driveway widening drawings

Use the City of Kitchener guidance for your exact project. A shed site plan is mostly about the shed location, dimensions, setbacks, and nearby structures. A driveway-widening drawing needs municipal frontage details that would not matter for a backyard deck.

Decks and porches

For a deck or porch, show the dimensions of the deck, the distance from the deck to the property lines, and other structures in the area, such as a shed or pool.

Additions

For a home addition, show the property boundaries, existing buildings, other structure locations, the proposed location of the addition, and the dimensions and distance to property lines for the proposed addition.

Pools

For a pool, show the location and configuration of the proposed pool, distance to all property lines and existing building, and fence locations confirming compliance with the fence bylaw, including the type of construction.

Garages, carports, and accessory structures

For a carport or attached garage, show the proposed location, dimensions, distance from the proposed structure to property lines, and other structures in the area.

For a detached garage or other accessory structure, show the proposed accessory building or garage location, dimensions, distance from the building to the property line, and other structures in the area. For a shed, show the proposed shed location, dimensions, distance from the shed to the property line, and nearby structures such as a deck or pool.

Driveway widening

For driveway widening, include a scaled drawing in metres. Show the property lines, house, existing and proposed driveway widths, curb cut width, walkway width if applicable, sidewalk and curb locations, distances to hydrants, utility poles, guy wires, utility boxes, light posts, signs, and municipal trees, plus a north arrow.

How to draw your City of Kitchener site plan

The quickest route is to create a site plan with HomeCat — walk your property with your phone and get a permit-ready drawing back, free.

If you would rather draw it yourself, our DIY guide to drawing a site plan in Ontario covers all three methods step by step: from a survey, from a Google Maps screenshot, or by hand.

City of Kitchener does not require a survey for most homeowner projects — a clean scaled drawing is enough for decks, porches, sheds, garages, accessory structures, additions, and driveway widening when you have reliable measurements. Use the survey method when the property lines are uncertain or the project sits tight to a setback.

If you do not have a survey, check your closing documents, ask your real estate lawyer, closing agent, or mortgage company, or submit a building records request to the City of Kitchener. Our guide to getting a property survey in Ontario covers the cheaper options before paying for a new one.

Driveway widening is the one project where the drawing looks less like a backyard plan and more like a measured frontage plan. Draw it in metres, add a north arrow, and pace out the municipal frontage yourself — a survey will not show the curb, sidewalk, walkway, hydrants, utility poles, guy wires, utility boxes, light posts, signs, or municipal trees that City of Kitchener wants dimensioned.

Create a site plan for free using HomeCat that gets your residential building permit approved in City of Kitchener. Get started

Common site plan mistakes that delay your residential building permit in City of Kitchener

Most City of Kitchener site plan delays come from missing dimensions, missing nearby structures, or using a generic drawing that does not match the project type.

Missing dimensions or distances to property lines

City of Kitchener repeatedly asks for dimensions and distances to property lines. Add the size of the proposed deck, addition, garage, shed, pool, or driveway work and the relevant setbacks directly on the drawing.

Missing other structures in the area

For decks, carports, garages, accessory structures, and sheds, show other nearby structures such as decks, pools, sheds, and garages. These help the reviewer understand spacing and the project area.

Missing pool fence details

For pools, show fence locations and include the type of construction. Do not leave the fence bylaw information out of the site plan.

Missing driveway frontage details

For driveway widening, include the scaled drawing in metres, driveway widths, curb cut width, walkway width if applicable, sidewalk and curb locations, north arrow, and distances to hydrants, utility poles, guy wires, boxes, light posts, signs, and municipal trees.

Unclear property boundaries

If you are not sure where the property lines are, do not guess on the final permit drawing. Use a survey, title documents, or other reliable property information before committing to setback measurements.

Frequently asked questions about site plans

Can homeowners prepare and submit their own drawings in City of Kitchener?

Yes. In Ontario, a homeowner can generally prepare drawings for a house they own because the Ontario Building Code exempts design work for "a house owned by the person" from the usual designer qualification requirements under Division C, Article 3.2.5.1.(3)(b)(i). City of Kitchener can still require measured, scaled, and complete drawings for permit review.

What if City of Kitchener asks me to fill out Schedule 1: Designer Information?

For the design activities section, select House and describe the project, such as "deck," "porch," "addition," "pool," "garage," "shed," or "accessory structure."

Under the designer declaration, choose The design work is exempt from the registration and qualification requirements of the Building Code. For the basis of exemption, write Homeowner.

Where can I get a legal property survey in City of Kitchener?

Start with your closing documents, then ask your real estate lawyer, closing agent, or mortgage company. If those do not work, submit a building records request to the City of Kitchener.

Read our Ontario ultimate guide for getting a property survey before paying for a new survey.

Does my survey need to be recent?

An older survey prepared by a licensed Ontario Land Surveyor can still be useful if it accurately shows property boundaries and existing conditions. Update the site plan so it shows current decks, sheds, pools, garages, driveways, sidewalks, curb cuts, accessory structures, and proposed work.

Can I use Google Maps for my City of Kitchener site plan?

Use Google Maps only as a planning reference. City of Kitchener's guidance depends on measured dimensions, distances to property lines, and, for driveway widening, a scaled drawing in metres. Confirm property lines and frontage measurements before submitting.

What if City of Kitchener rejects my site plan?

Read the review comments and revise the drawing to answer each one. Add missing property lines, dimensions, setbacks, nearby structures, pool fence information, driveway widths, curb cut width, sidewalk and curb locations, north arrow, utility distances, or municipal tree details as requested.

When do I need a survey or professional drawing?

Use a survey when the project is close to a lot line, when property boundaries are uncertain, or when accurate setbacks are important for an addition, pool, garage, shed, or accessory structure. You may need professional help for engineered, structural, complex, or non-standard work.

Conclusion

A good beginner site plan does not need to be complicated. It needs to show the property, the existing conditions, the proposed work, and the measurements that matter for your residential building permit in City of Kitchener.
