Design a quiet workspace outside the house without treating it like an empty storage shed. Coordinate the room, windows, doors, comfort systems, foundation, property placement, and construction information in one project.
A useful drawing package brings backyard offices, office sheds, garden offices and rooms, outdoor studios, office and work pods, conversions, complete interiors, permits, and contractor-ready drawings into one coordinated view. That makes the project easier to understand, review, price, and build.
Begin with target footprint, desk and storage needs, windows and doors, insulation and finish preferences, customer- or specialist-specified power and HVAC, foundation approach, property information, setbacks, and local requirements. HomeCat checks the property's zoning automatically and uses the applicable requirements to guide the plan. From there, the drawings can be shaped around the actual property and the decisions that matter to the project, with permit or professional-review items clearly flagged when they need attention.
Sign in, choose the property, and enter the size and key requirements.
HomeCat checks zoning and develops the layout, site fit, and drawing package.
Save the project and export measured drawings, quantities, and cost inputs.
HomeCat keeps the project dimensions connected to material quantities and cost inputs as the plan changes.
HomeCat captures the office footprint, property setbacks, path width, entrance landing, grade changes, and clearance around the backyard structure.
HomeCat measures desk zones, chair clearance, storage depth, meeting space, door swings, and the clear route through the room.
HomeCat coordinates window areas, sill heights, door glazing, ceiling height, roof slope, and usable headroom across the workspace.

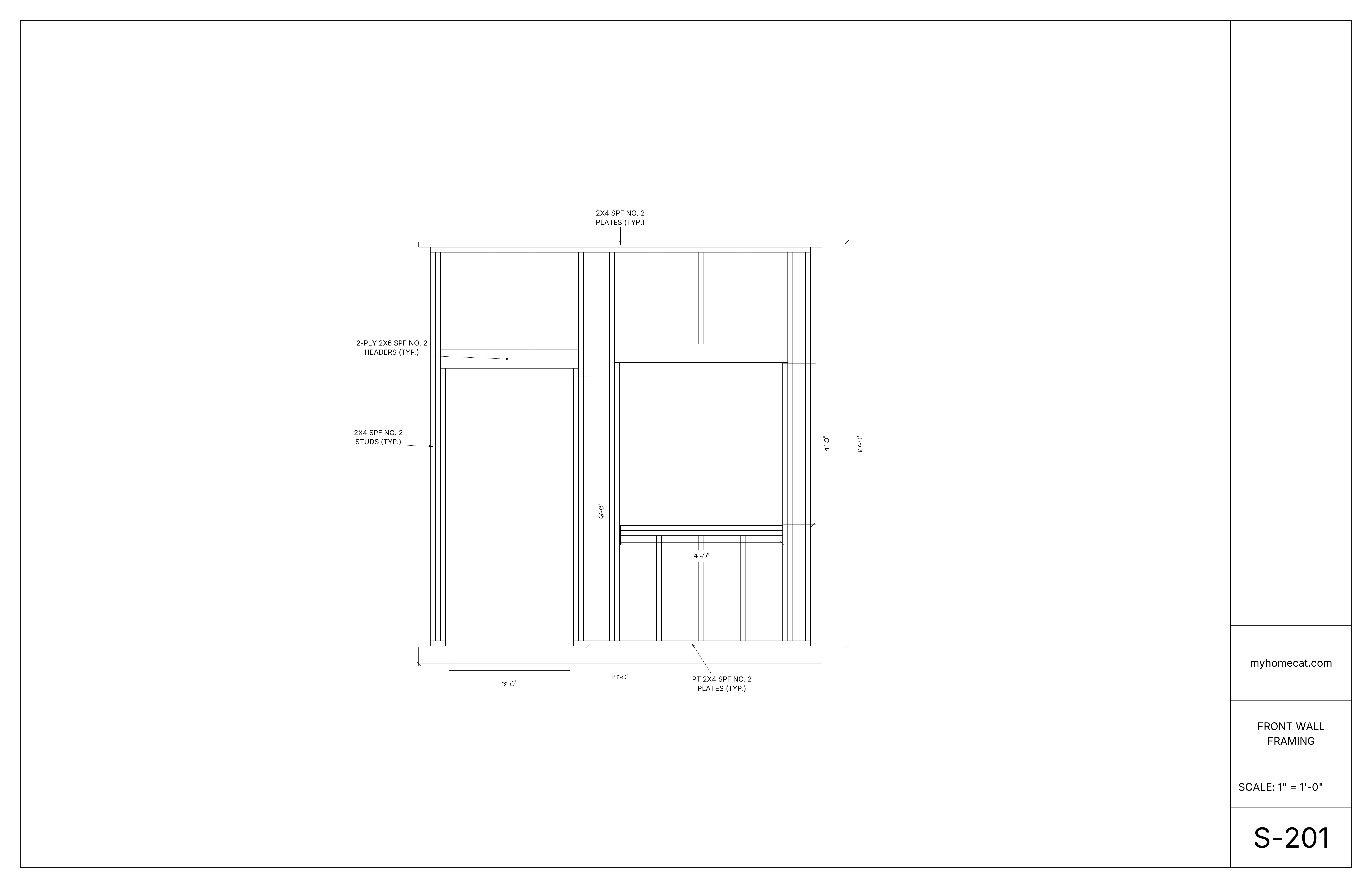

Measured floor, wall, roof, door, and window areas support pricing for framing, insulation, air sealing, cladding, and interior finishes.
The coordinated workspace layout includes electrical outlets, lighting, data routes, heating, cooling, and ventilation quantities.
The foundation plan and access path clarify concrete or pier quantities, excavation, delivery constraints, trench lengths, and landscape restoration.
Yes. HomeCat automatically checks the property's zoning requirements and uses them to guide the project. It also flags permit or professional-review items that still need attention.

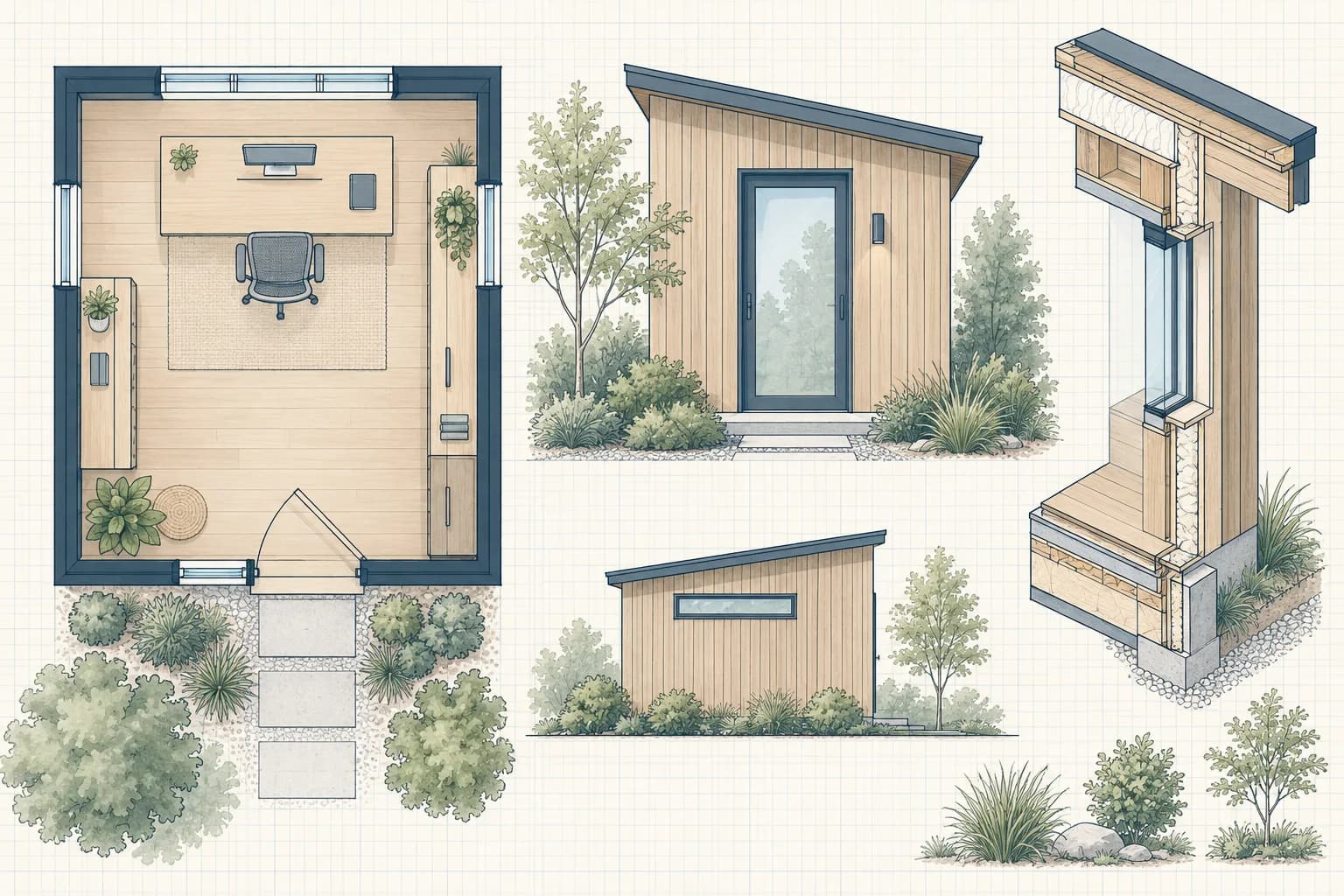

A typical package includes Backyard-office floor plan, Exterior elevations, Site and foundation context, Permit and contractor drawings. HomeCat tailors the sheets and level of detail to the project, property, applicable permit requirements, and professional scope.
Prepare target footprint, desk and storage needs, windows and doors, insulation and finish preferences, customer- or specialist-specified power and HVAC, foundation approach, property information, setbacks, and local requirements. Better source information reduces assumptions and makes review comments easier to resolve.
Yes. HomeCat builds one coordinated package for permit applications, contractor pricing, and construction coordination, including the project-specific documents and licensed professional input.
Yes. HomeCat provides architectural and engineering drawings with licensed professional review and stamping. The review and stamp are coordinated as part of the final drawing package.
