Basement plans for permits, remodeling, and construction

Turn an unfinished or outdated basement into a coordinated layout before framing begins. Document rooms, circulation, stairs, windows, utilities, and life-safety information clearly.

Start your project
  • Existing basement plan
  • Proposed floor plan
  • Egress and stair information

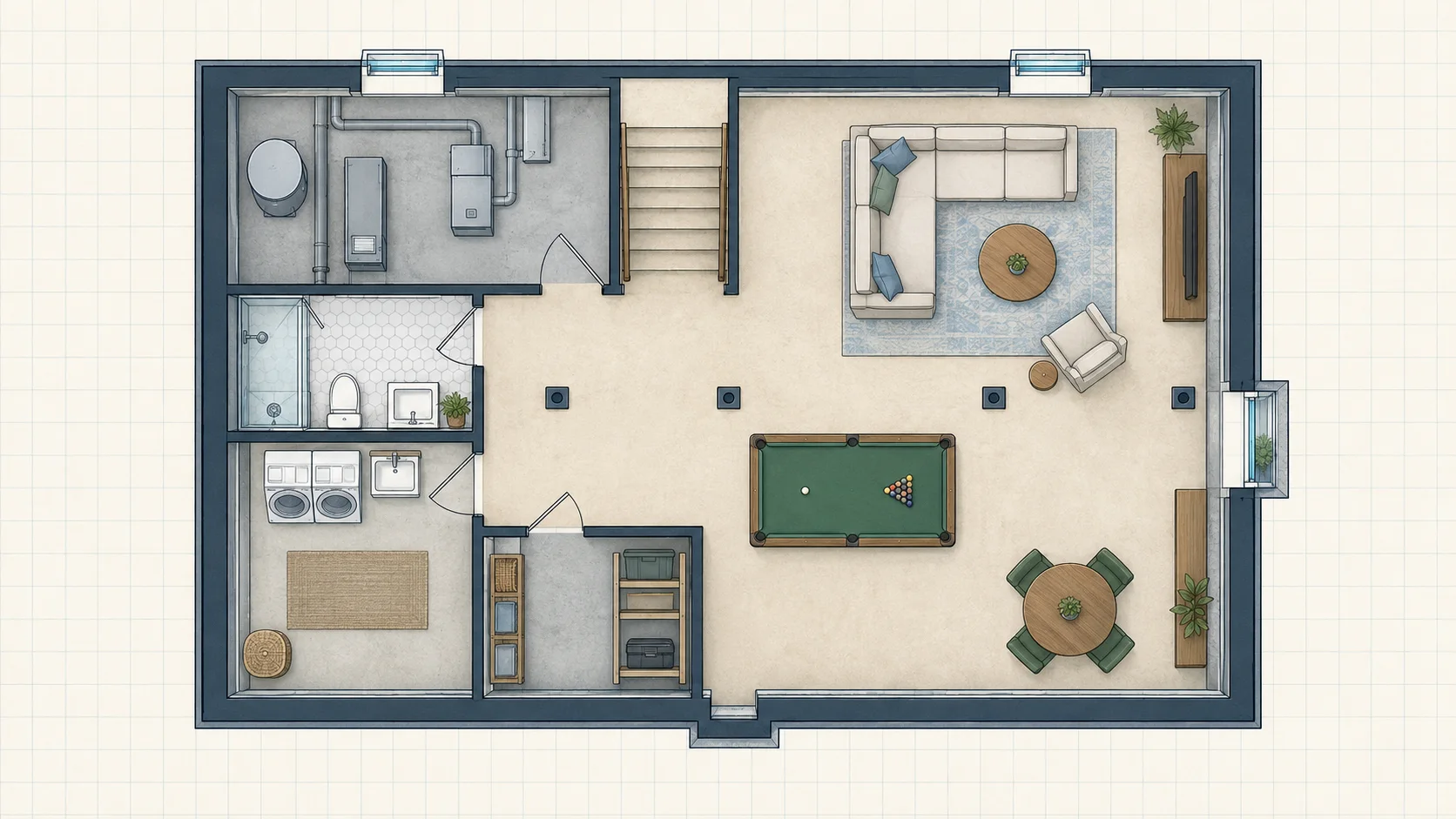

Basement Plans drawing example

A practical approach to basement plans

A useful drawing package brings finished basements, interior alterations, bedrooms, bathrooms, egress, stairs, existing conditions, permits, and contractor handoff into one coordinated view. That makes the project easier to understand, review, price, and build.

Begin with existing measurements, foundation and columns, stairs, windows, utilities, proposed rooms, bathroom needs, ceiling conditions, and local permit requirements. HomeCat checks the property's zoning automatically and uses the applicable requirements to guide the plan. From there, the drawings can be shaped around the actual property and the decisions that matter to the project, with permit or professional-review items clearly flagged when they need attention.

How it works

  1. 01

    Add your basement project

    Sign in, choose the property, and enter the size and key requirements.

  2. 02

    Coordinate the plan

    HomeCat checks zoning and develops the layout, site fit, and drawing package.

  3. 03

    Save and export

    Save the project and export measured drawings, quantities, and cost inputs.

Project measurements and costs

HomeCat keeps the project dimensions connected to material quantities and cost inputs as the plan changes.

Primary measurements
Clearances and structure
Additional dimensions
Stairs and egress
Units
Metric + imperial

Measured project details

  • Clearances and structure

    HomeCat captures clear ceiling heights, beam depths, column locations, foundation wall thicknesses, and soffit zones across the basement.

  • Stairs and egress

    HomeCat records stair rise and run, landing sizes, headroom, exit travel distances, and window opening dimensions for basement access and egress.

  • Rooms and utilities

    HomeCat measures proposed room areas, circulation widths, fixture clearances, equipment zones, drain locations, and utility run lengths.

Material and cost inputs

  • Framing and finishes

    HomeCat calculates partition lengths, ceiling and floor areas, door counts, and finish quantities for the proposed rooms.

  • Openings and fixtures

    HomeCat counts new or altered windows, doors, plumbing fixtures, cabinets, equipment, and utility connections for trade pricing.

  • Documentation scope

    HomeCat coordinates the existing plan, proposed plan, egress information, stair details, and permit views into one defined drawing scope.

What homeowners usually ask

Does HomeCat check my property's zoning requirements?

Yes. HomeCat automatically checks the property's zoning requirements and uses them to guide the project. It also flags permit or professional-review items that still need attention.

What should basement plans include?

A typical package includes Existing basement plan, Proposed floor plan, Egress and stair information, Permit drawing package. HomeCat tailors the sheets and level of detail to the project, property, applicable permit requirements, and professional scope.

What should I gather before I start?

Prepare existing measurements, foundation and columns, stairs, windows, utilities, proposed rooms, bathroom needs, ceiling conditions, and local permit requirements. Better source information reduces assumptions and makes review comments easier to resolve.

Can these drawings support a permit or contractor quote?

Yes. HomeCat builds one coordinated package for permit applications, contractor pricing, and construction coordination, including the project-specific documents and licensed professional input.

Can HomeCat provide stamped architectural or engineering drawings?

Yes. HomeCat provides architectural and engineering drawings with licensed professional review and stamping. The review and stamp are coordinated as part of the final drawing package.
