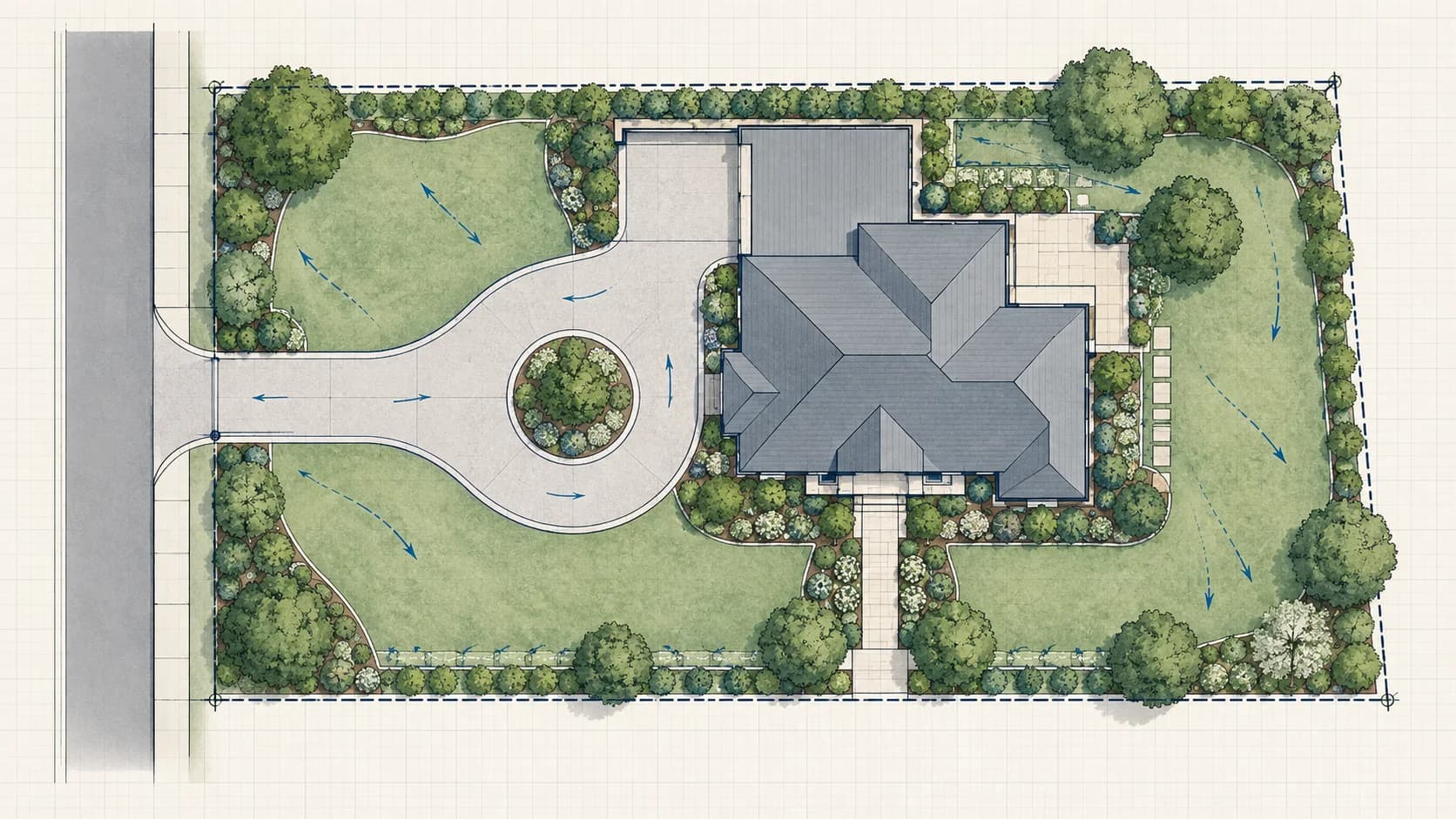

Show the existing and proposed driveway in relation to the street, sidewalk, property, buildings, drainage, and access. HomeCat checks the applicable property rules and coordinates public-works or engineering requirements in the drawing package.
A useful drawing package brings new driveways, extensions, widening, curb openings, aprons, entrances, culverts, grading context, and permit submissions into one coordinated view. That makes the project easier to understand, review, price, and build.
Begin with property boundaries, existing driveway and street edge, proposed dimensions, sidewalk and curb information, grades, drainage, culvert data, and local standards. HomeCat checks the property's zoning automatically and uses the applicable requirements to guide the plan. From there, the drawings can be shaped around the actual property and the decisions that matter to the project, with permit or professional-review items clearly flagged when they need attention.
Sign in, choose the property, and enter the size and key requirements.
HomeCat checks zoning and develops the layout, site fit, and drawing package.
Save the project and export measured drawings, quantities, and cost inputs.
HomeCat keeps the project dimensions connected to material quantities and cost inputs as the plan changes.
HomeCat measures driveway length, width, total area, tapers, parking pads, and turning radii.
HomeCat captures spot elevations, longitudinal slopes, crossfalls, curb transitions, and garage threshold heights.
HomeCat records curb lengths, trench drains, swales, catch basins, culverts, and runoff collection areas.
HomeCat calculates surface area and layer depths for concrete, asphalt, pavers, gravel, and bedding materials.
HomeCat derives excavation, disposal, granular base, compaction, and geotextile quantities from finished grades.
HomeCat totals curbs, edging, channels, basins, culverts, and restoration areas for coordinated pricing.
Yes. HomeCat automatically checks the property's zoning requirements and uses them to guide the project. It also flags permit or professional-review items that still need attention.
A typical package includes Driveway site plan, Curb and apron detail, Access dimensions, Permit submission drawing. HomeCat tailors the sheets and level of detail to the project, property, applicable permit requirements, and professional scope.
Prepare property boundaries, existing driveway and street edge, proposed dimensions, sidewalk and curb information, grades, drainage, culvert data, and local standards. Better source information reduces assumptions and makes review comments easier to resolve.
Yes. HomeCat builds one coordinated package for permit applications, contractor pricing, and construction coordination, including the project-specific documents and licensed professional input.
Yes. HomeCat provides architectural and engineering drawings with licensed professional review and stamping. The review and stamp are coordinated as part of the final drawing package.
