Plan an office that happens to use a shed-sized footprint—not a storage shed with a desk added afterward. Coordinate the workspace, building envelope, utilities, openings, foundation, and property placement from the beginning.
A useful drawing package brings purpose-built office sheds, backyard office sheds, finished interiors, daylight, insulation, power and HVAC coordination, foundations, permits, and contractor-ready drawings into one coordinated view. That makes the project easier to understand, review, price, and build.
Begin with target footprint, desk and storage requirements, windows and doors, insulation and interior finishes, customer- or specialist-specified electrical and HVAC needs, foundation approach, property information, and local requirements. HomeCat checks the property's zoning automatically and uses the applicable requirements to guide the plan. From there, the drawings can be shaped around the actual property and the decisions that matter to the project, with permit or professional-review items clearly flagged when they need attention.
Sign in, choose the property, and enter the size and key requirements.
HomeCat checks zoning and develops the layout, site fit, and drawing package.
Save the project and export measured drawings, quantities, and cost inputs.
HomeCat keeps the project dimensions connected to material quantities and cost inputs as the plan changes.
HomeCat captures workstation dimensions, storage runs, equipment footprints, door swings, and circulation within the compact shed shell.
HomeCat measures windows, glazed doors, sill heights, ventilation openings, and wall space reserved for shelving and screens.
HomeCat records wall thicknesses, ceiling height, roof slope, floor build-up, framing spans, and usable interior dimensions after insulation.
Coordinated floor, wall, and roof areas support takeoffs for framing, sheathing, insulation, membranes, siding, roofing, and interior lining.
The plan organizes pricing for flooring, wall finishes, built-in storage, work surfaces, acoustic treatment, doors, and windows.
Outlet counts, lighting points, data locations, ventilation routes, and heating or cooling capacity define the office service package.
Yes. HomeCat automatically checks the property's zoning requirements and uses them to guide the project. It also flags permit or professional-review items that still need attention.

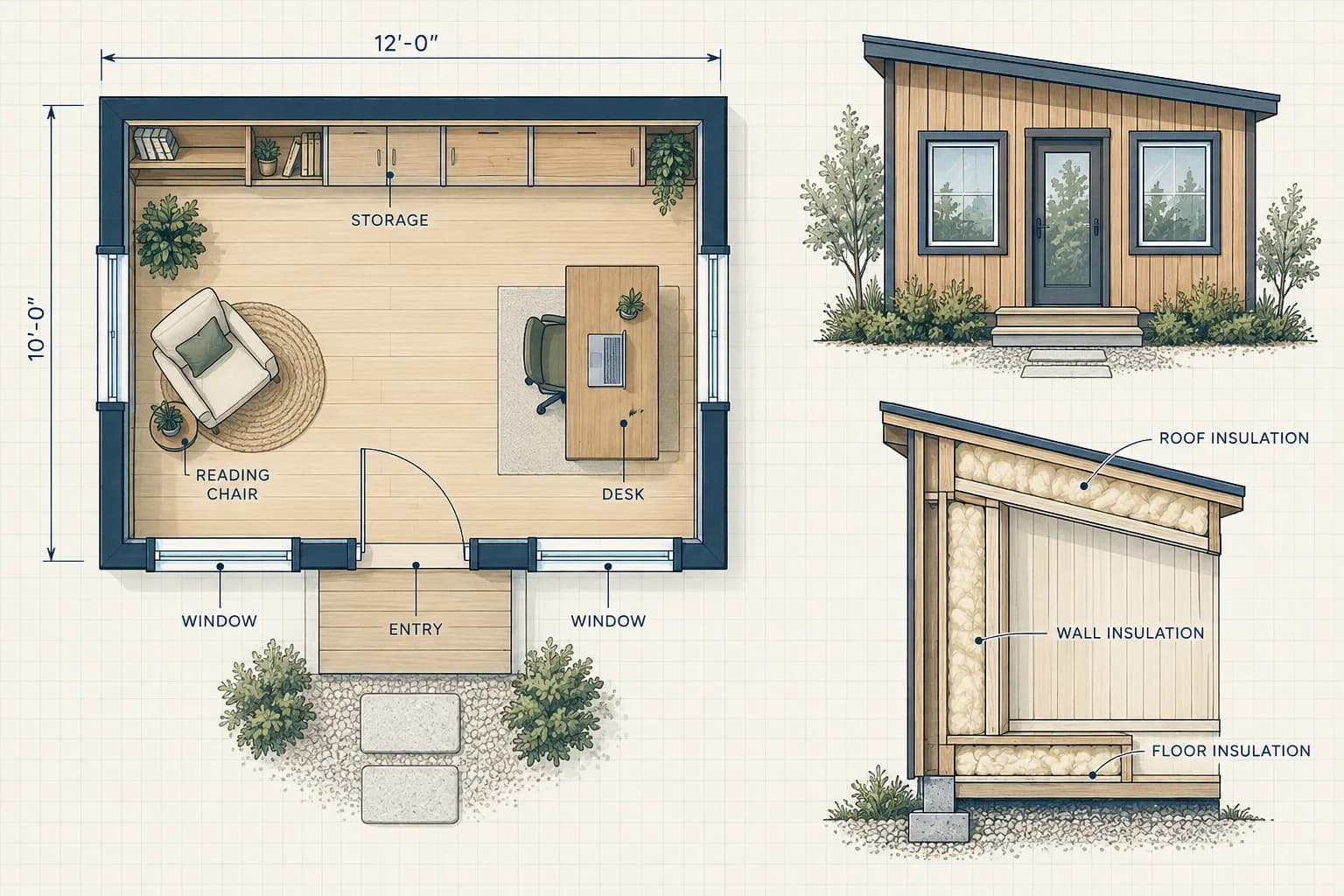

A typical package includes Office-shed floor plan, Exterior elevations, Foundation and site plan, Permit and construction drawings. HomeCat tailors the sheets and level of detail to the project, property, applicable permit requirements, and professional scope.
Prepare target footprint, desk and storage requirements, windows and doors, insulation and interior finishes, customer- or specialist-specified electrical and HVAC needs, foundation approach, property information, and local requirements. Better source information reduces assumptions and makes review comments easier to resolve.
Yes. HomeCat builds one coordinated package for permit applications, contractor pricing, and construction coordination, including the project-specific documents and licensed professional input.
Yes. HomeCat provides architectural and engineering drawings with licensed professional review and stamping. The review and stamp are coordinated as part of the final drawing package.
