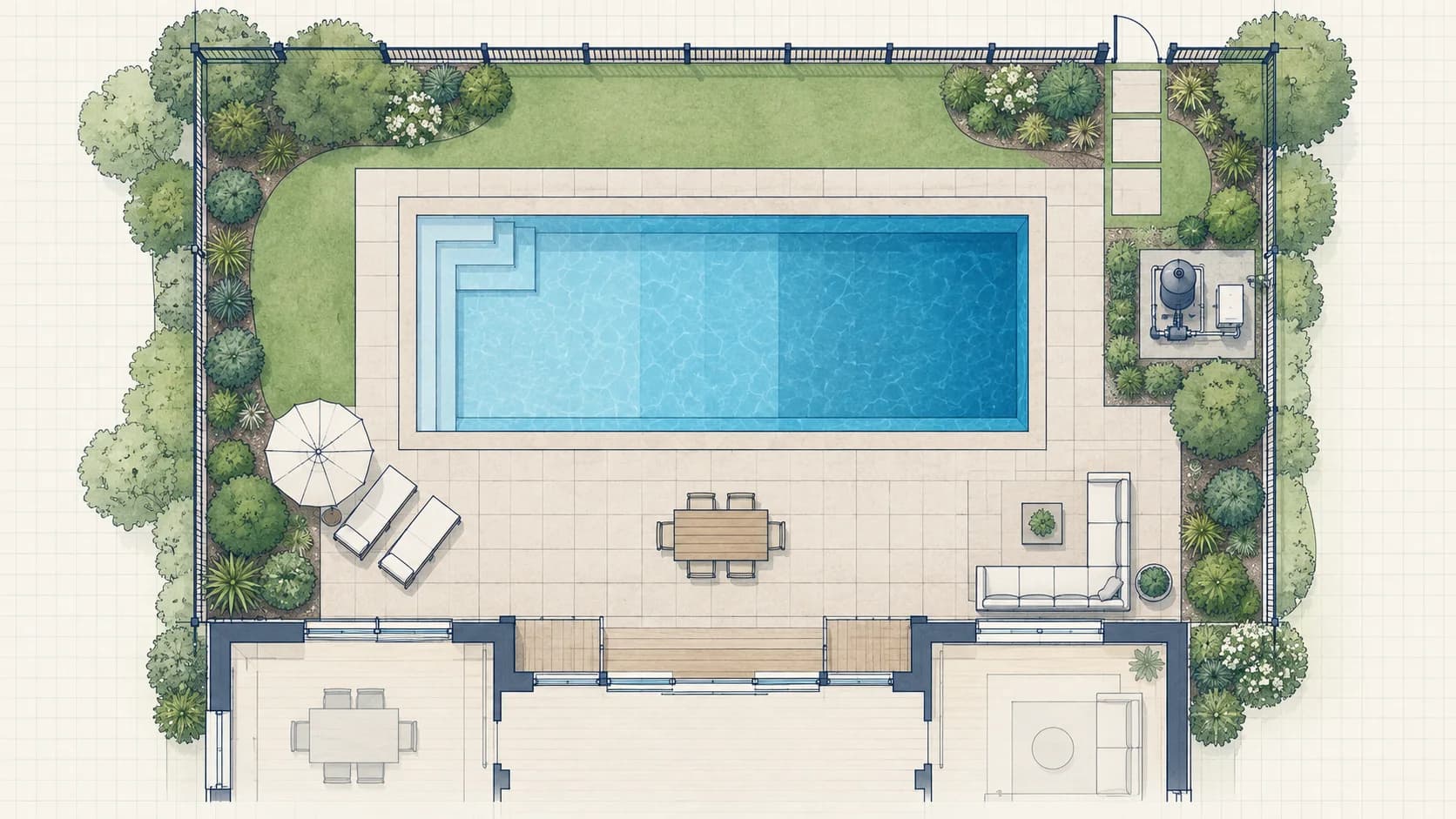

Coordinate the pool with the house, lot, access, barriers, equipment, grading, and outdoor space. HomeCat organizes the site plan, permit information, and required structural or engineering input in one package.
A useful drawing package brings pool footprints, setbacks, fencing and barriers, equipment placement, decks, access, drainage context, HOA approval, and permit submissions into one coordinated view. That makes the project easier to understand, review, price, and build.
Begin with property survey or base plan, pool supplier drawings, equipment data, proposed location, barriers, deck areas, grading information, and local requirements. HomeCat checks the property's zoning automatically and uses the applicable requirements to guide the plan. From there, the drawings can be shaped around the actual property and the decisions that matter to the project, with permit or professional-review items clearly flagged when they need attention.
Sign in, choose the property, and enter the size and key requirements.
HomeCat checks zoning and develops the layout, site fit, and drawing package.
Save the project and export measured drawings, quantities, and cost inputs.
HomeCat keeps the project dimensions connected to material quantities and cost inputs as the plan changes.
HomeCat captures pool length, width, depth transitions, wall profiles, step geometry, surface area, and water volume.
HomeCat measures coping perimeter, deck area, access widths, equipment clearances, and distances to property features.
HomeCat records suction, return, drain, overflow, and equipment-line lengths with inlet and outlet counts.
HomeCat calculates excavation, shell, waterproofing, tile, and interior-finish quantities from the modeled pool geometry.
HomeCat totals coping length and paving area by material, including steps, borders, drains, and edge conditions.
HomeCat coordinates pumps, filters, heaters, sanitizing equipment, fittings, valves, and pipe lengths into the estimate.
Yes. HomeCat automatically checks the property's zoning requirements and uses them to guide the project. It also flags permit or professional-review items that still need attention.
A typical package includes Pool site plan, Barrier and access plan, Equipment layout, Permit coordination package. HomeCat tailors the sheets and level of detail to the project, property, applicable permit requirements, and professional scope.
Prepare property survey or base plan, pool supplier drawings, equipment data, proposed location, barriers, deck areas, grading information, and local requirements. Better source information reduces assumptions and makes review comments easier to resolve.
Yes. HomeCat builds one coordinated package for permit applications, contractor pricing, and construction coordination, including the project-specific documents and licensed professional input.
Yes. HomeCat provides architectural and engineering drawings with licensed professional review and stamping. The review and stamp are coordinated as part of the final drawing package.
