Tiny home plans with complete, livable interiors

Plan the kitchen, bathroom, sleeping space, storage, circulation, openings, and structure together. Compare sizes without reducing the home to an empty shell.

Start your project

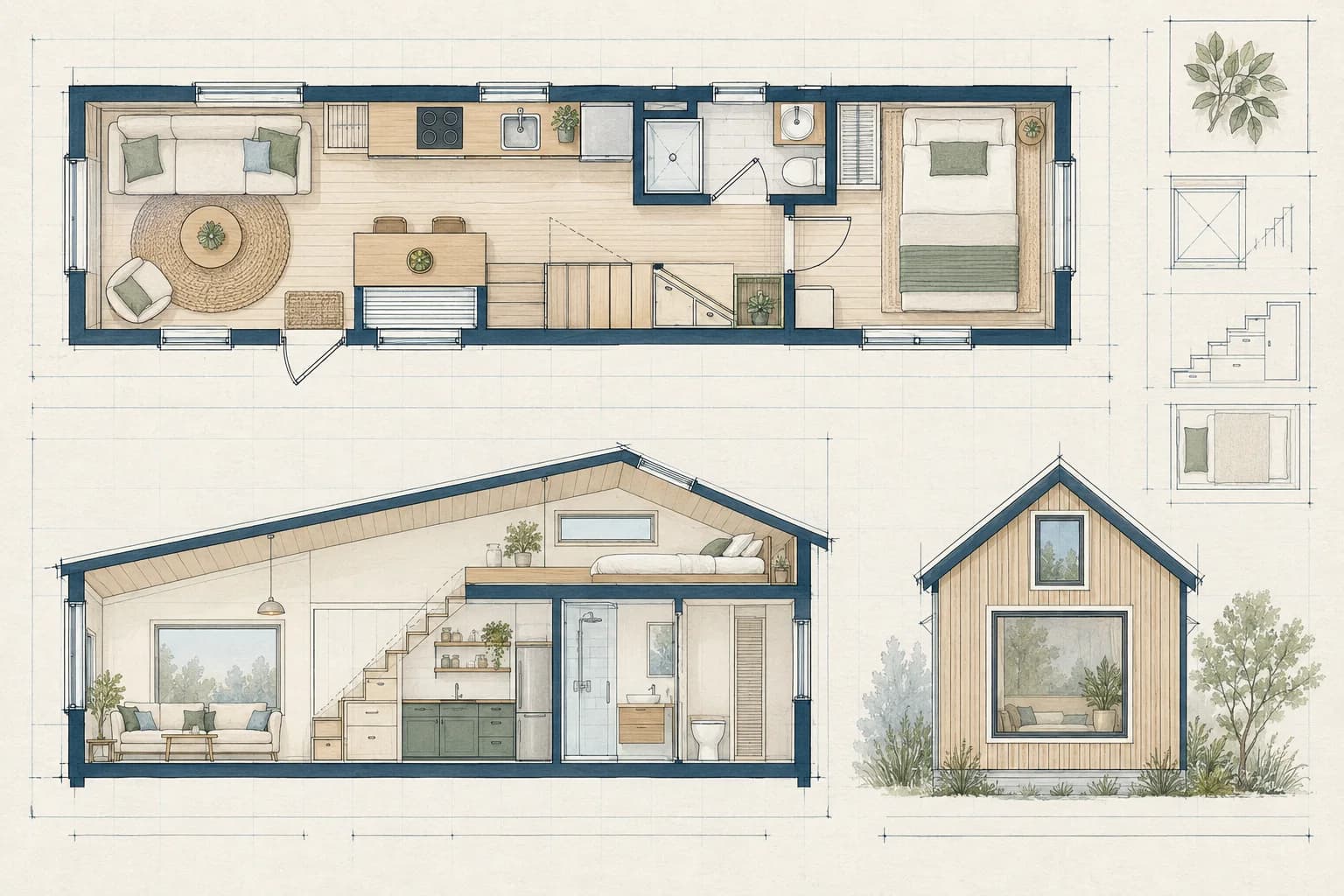

Complete floor plans
Exterior elevations
Foundation or trailer context

A practical approach to tiny home plans

A useful drawing package brings complete tiny-home interiors, 1- and 2-bedroom layouts, lofts, fixed foundations, homes on wheels, and dimension-specific plans into one coordinated view. That makes the project easier to understand, review, price, and build.

Begin with footprint, mobility, bedroom count, kitchen and bathroom needs, storage, openings, foundation approach, property context, and local rules. HomeCat checks the property's zoning automatically and uses the applicable requirements to guide the plan. From there, the drawings can be shaped around the actual property and the decisions that matter to the project, with permit or professional-review items clearly flagged when they need attention.

How it works

01
Add your tiny home project
Sign in, choose the property, and enter the size and key requirements.
02
Coordinate the plan
HomeCat checks zoning and develops the layout, site fit, and drawing package.
03
Save and export
Save the project and export measured drawings, quantities, and cost inputs.

Project measurements and costs

HomeCat keeps the project dimensions connected to material quantities and cost inputs as the plan changes.

Primary measurements: Compact Rooms And Routes
Additional dimensions: Loft Stairs And Headroom
Units: Metric + imperial

Measured project details

Compact Rooms And Routes
HomeCat captures room dimensions, aisle widths, door swings, furniture clearances, storage volumes, and the continuous circulation path through the home.
Loft Stairs And Headroom
HomeCat calculates stair geometry, loft area, guard lengths, ceiling slopes, standing zones, and usable headroom above both levels.
Openings And Site Fit
HomeCat coordinates window and door sizes, exterior dimensions, overall height, foundation or chassis support points, setbacks, access, and utility entry locations.

Material and cost inputs

High Efficiency Envelope
Coordinated shell areas support takeoffs for framing, sheathing, insulation, membranes, cladding, roofing, glazing, and compact exterior details.
Kitchen Bath And Utilities
The compressed service layout defines cabinet lengths, fixture counts, appliance spaces, plumbing runs, electrical points, and ventilation routes.
Built Ins And Structure
Detailed stairs, lofts, storage, foundation or chassis supports, and custom furniture clarify labor, hardware, and material quantities.

What homeowners usually ask

Does HomeCat check my property's zoning requirements?

Yes. HomeCat automatically checks the property's zoning requirements and uses them to guide the project. It also flags permit or professional-review items that still need attention.

What should tiny home plans include?

A typical package includes Complete floor plans, Exterior elevations, Foundation or trailer context, Permit and construction drawings. HomeCat tailors the sheets and level of detail to the project, property, applicable permit requirements, and professional scope.

What should I gather before I start?

Prepare footprint, mobility, bedroom count, kitchen and bathroom needs, storage, openings, foundation approach, property context, and local rules. Better source information reduces assumptions and makes review comments easier to resolve.

Can these drawings support a permit or contractor quote?

Yes. HomeCat builds one coordinated package for permit applications, contractor pricing, and construction coordination, including the project-specific documents and licensed professional input.

Can HomeCat provide stamped architectural or engineering drawings?

Yes. HomeCat provides architectural and engineering drawings with licensed professional review and stamping. The review and stamp are coordinated as part of the final drawing package.
